Design & Fabrication
We have a well-equipped manufacturing facility. Assembly, welding, and low-volume CNC machining services (CNC milling, turning, and drilling) are available for rapid prototyping and other small-batch applications. CAD and drafting services are also available.
Turning & Milling

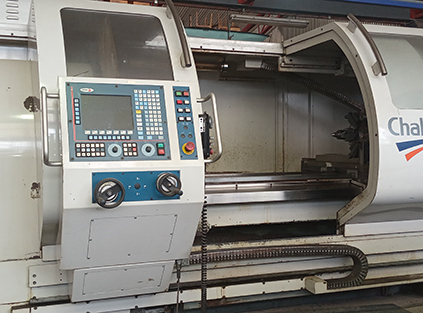

- CNC Lathe: 2-axis, 310 mm dia. swing over cross slide, 550 mm dia. swing over bed, 1200 mm max turning length
- Manual Lathe: 220 mm dia. swing over cross slide, 400 mm dia. swing over bed, 740 mm max turning length
- CNC Milling Machine: 3-axis (+C axis; rotary table), 500 mm Y-axis & 760 mm X-axis travel, 1270 x 300 mm bed size
- Manual Milling Machine: 298 mm Y-axis & 645 mm X-axis travel, 1067 x 230 mm bed size
- Manufactured to customer-specified tolerance
- Typical tolerance range from +- 0.01 mm to 0.05 mm

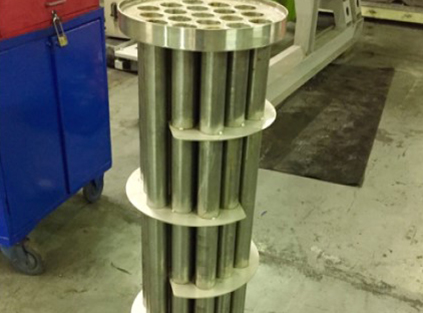

Mild Steel & Stainless Steel Fabrication
- Machining and joining services
- End-to-end manufacturing
- Profile bending and sheet rolling capabilities (up to 1300 x 4.5 mm mild steel)
- Engineering and design services
- No minimum order quantity required
Finishing

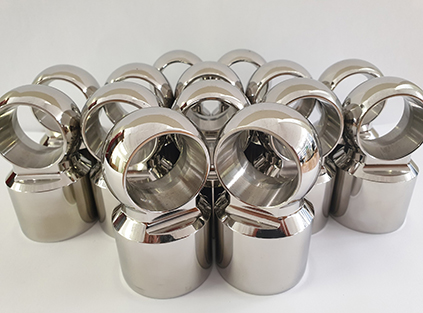

- Polishing and brushing
- Drilling, tapping and countersinking
- Spray painting
